Product Details:
|
| Type: | Particle Sensor | Maximum Operating Temperature: | + 70 C |
|---|---|---|---|
| Minimum Operating Temperature: | - 20 C | Operating Supply Voltage: | 5 V |
| Highlight: | HPMA115C0-003 Other Sensors,Other Sensors laser-based,Air Quality Particle Sensor |
||

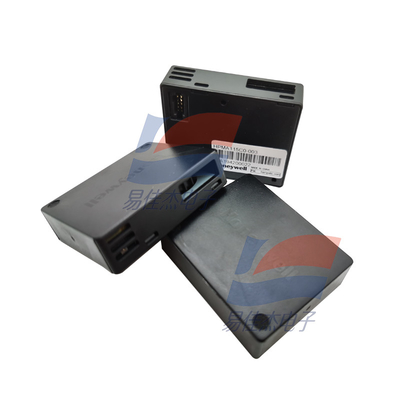

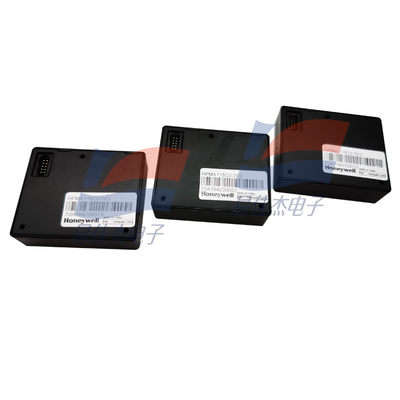

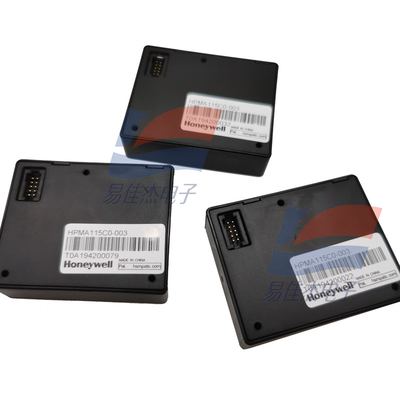

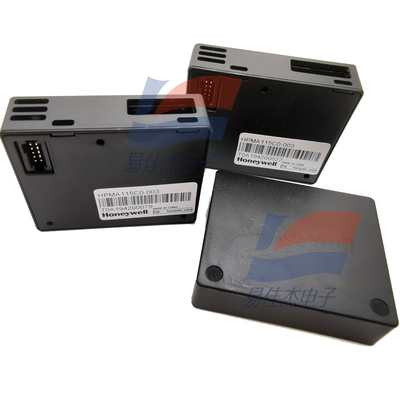

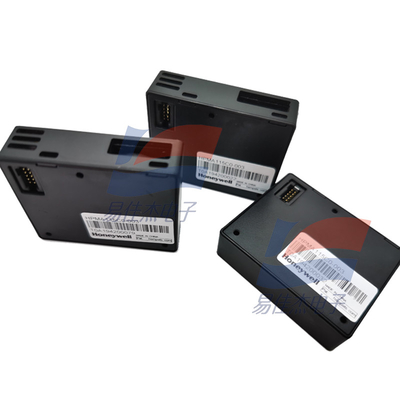

HPMA115C0-003 Air Quality Sensor PARTICLE SENSOR Long Life 10 Years
The Honeywell HPM Series Particulate Matter Sensor is a laser-based sensor which detects and counts particles using light scattering. The detection concentration range is 0 µg/m3 to 1,000 µg/m3. A laser light source illuminates a particle as it is pulled through the detection chamber.
As particles pass through the laser beam, the light reflects off the particles and is recorded on the photo or light detector.
The light is then analyzed and converted to an electrical signal to calculate particle concentration. The Honeywell particle sensor provides information on the particle concentration for given particle concentration range.
FEATURES
• Laser-based light scattering particle sensing
• Concentration range: 0 µg/m3 to 1,000 µg/m3
• Fully calibrated
• EMC: Heavy industrial level IEC61000
• Response time: <6 s
• Supply current: 80 mA max.
• Output signal: UART (Universal Asynchronous Receiver/
Transmitter)
• PM2.5, PM10 output (standard); PM1.0, PM2.5, PM4.0,
PM10 output (compact)
• RoHS compliant
• REACH compliant
Datasheet:
| Current Rating | 80 mA |
| Installation style | SMD/SMT |
| Package/Case | 44 mm x 36 mm x 12 mm |
| Product Type | Air Quality Sensors |
| Supply Voltage | Maximum: 5.2 V |
| Supply Voltage | Min: 4.8 V |
| Unit weight | 6.25 kg |
