Product Details:
|
| Measuring Range: | 0.3~1.0 Microns | Counting Efficiency: | 50%@0.3 Microns |
|---|---|---|---|
| Effective Range: | 0-500 Micrograms/cubic Meter | Resolution: | 1 μg/m3 |
| Highlight: | PMS7003M,Digital Particle Concentration Sensor |
||

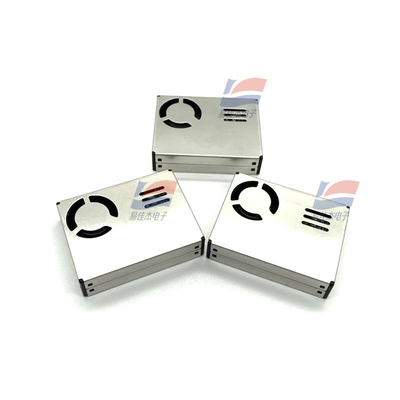

PMS7003M Digital Universal Particulate Concentration Sensor
PMS7003M is a digital universal particle concentration sensor based on the principle of laser scattering, which can continuously
Collect and calculate the number of suspended particles with different particle sizes in the air per unit volume, that is, the particle concentration distribution,
And then converted into mass concentration, and output in the form of general digital interface. This sensor can be embedded in various
Instruments or environmental improvement equipment related to the concentration of suspended particulate matter in the air to provide timely and accurate concentrations data.
Datasheet:
| Weighing volume | 0.1 liters |
| Single response time | <1 second |
| Comprehensive response time | ≤10 seconds |
| DC supply voltage | Type:5.0, Min:4.5 Max:5.5V |
