Product Details:
|
| Measuring Range: | 0.3-1.0μm, 1.0-2.5μm, 2.5-10μm | Technical Efficiency: | 50%@0.3μm, 98%@>=0.5μm |
|---|---|---|---|
| Weighing Quasi Volume: | 0.1L | Response Time: | ≤10S |
| Highlight: | PMS5003,Laser Particle Sensor Zero False |
||

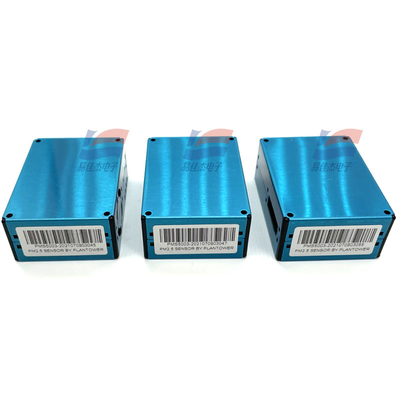

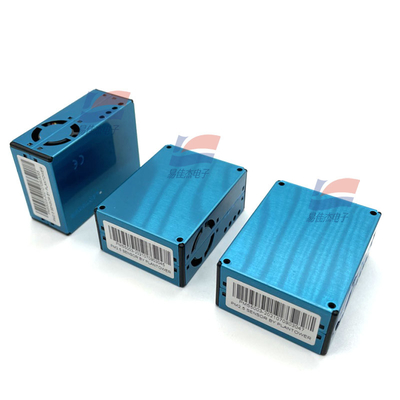

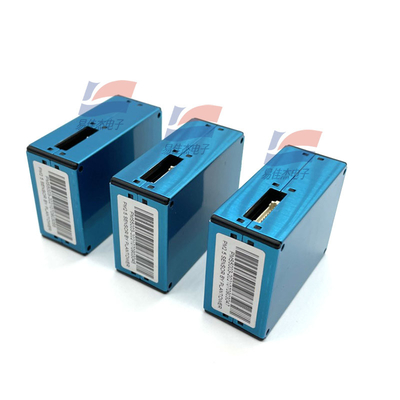

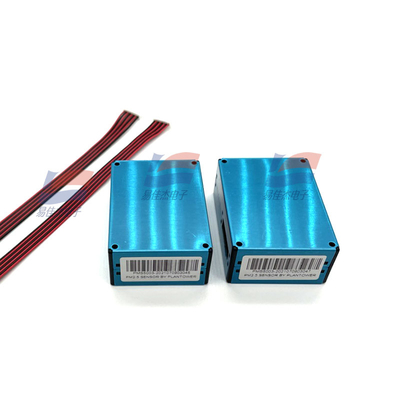

PMS5003 Dust Sensors Particle Digital Universal Zero False Alarm Rate
The PMS5003 sensor is an ultra-thin digital universal particle concentration sensor, which can be used to obtain the number of suspended particles in the air per unit volume, that is, the particle concentration, and output it in the form of a digital interface. The sensor can be embedded in various instrumentation or environmental improvement equipment related to the concentration of suspended particulate matter in the air to provide timely and accurate concentration values.
Product Features:
◆Zero false alarm rate
◆Real-time response
◆Accurate data
◆The minimum resolution particle size is 0.3 microns
Applications:
◆Air purifier
◆Fresh air system
◆Testing instruments
◆Dehumidifier
◆Air conditioner
Specification:
| Response time | ≤10S |
| DC power supply voltage | 5.0V |
| Maximum working current | 100mA |
| Standby current | ≤200μA |
| Data interface level | L＜0.8@ 3.3H＞2.7@ 3.3 |
| Working temperature range | -20~+50℃ |
| Working humidity range | 0~99%RH without condensation |
| Mean time between failures | ≥3 years |
| Maximum size | 50*38*21mm |
