Product Details:
|
| Input Voltage: | 10-20V | Thermal Error Of Span (0 To 70°C): | ±0.2-±1%FS |
|---|---|---|---|
| Thermal Error Of Offset (0 To 70°C): | ±0.2-±1%FS | Input Impedance: | 4-25KΩ |
| Output Impedance: | 2-4KΩ | ||
| Highlight: | Medical Pressure Transducer |
||

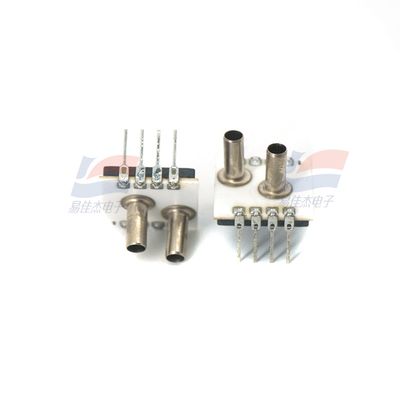

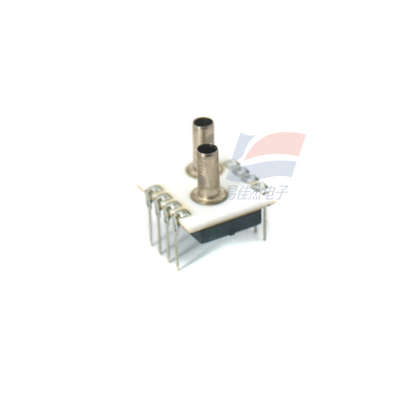

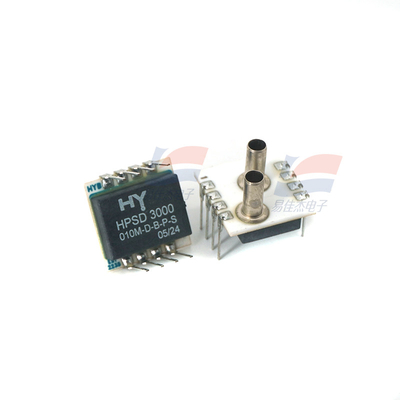

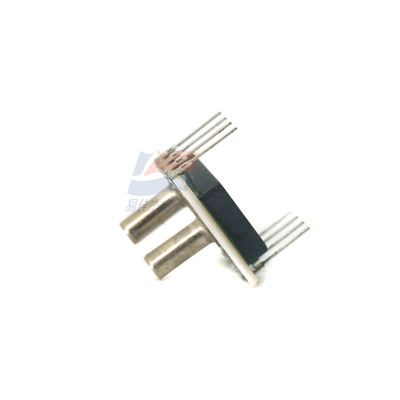

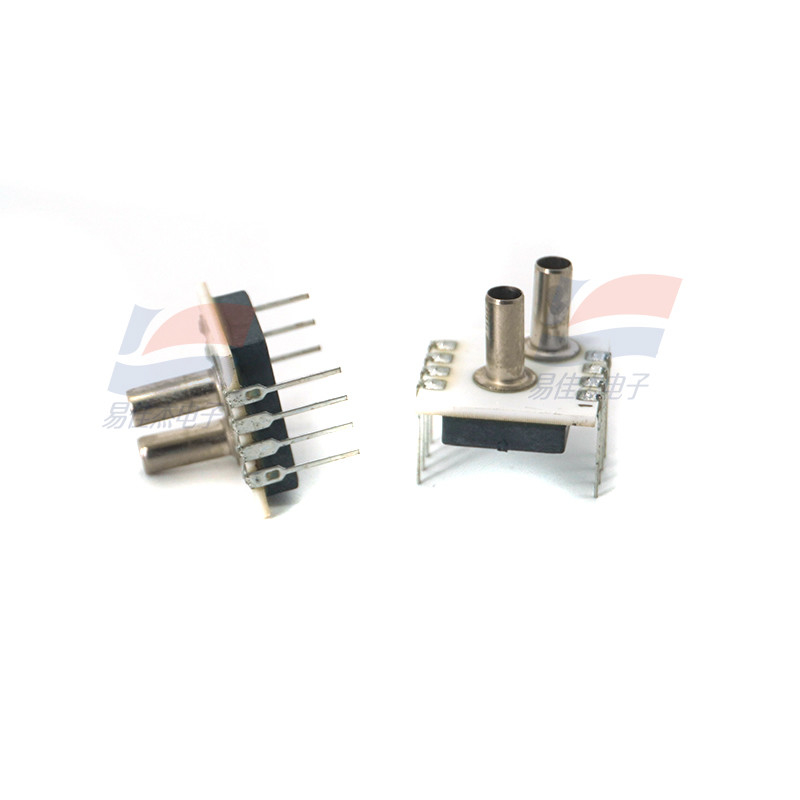

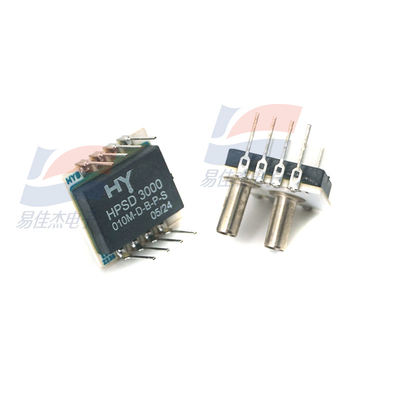

HPSAV3000-010M-D-S Pressure Transducer Use For Medical
Pressure transducer model HPSAV 3000 is an OEM pressure sensing device with temperature compensated and calibrated output.
High performance and accuracy enables use of this transducer in many applications, and with its compact and handy design is very suitable for
OEM users. The HPSAV 3000 pressure transducer are constructed on 1 mm thick ceramic
substrate with one or two pressure tubes. Thick film resistors printed on substrate are individually laser trimmed to provide temperature compensation, zero and span calibration. Pressure media compatible with this transducers family is dry air or non-corrosive gases and liquids.
The model HPSAV 3000 is designed for constant voltage excitation. Whole family includes pressure ranges from 10 mbar up to 7 bar
Applications
• Medical instrumentation
• Respirators
• HVAC
• Process control
• Leak detection
• Pneumatic controls
• Altimeters
Features
• Constant voltage excitation
• Easy to use DIP package
• Wide compensated range (0 to 70°C)
• High performance OEM applications
• Zero and span calibration
• Differential, gage and absolute configurations
• Wide pressure range from 10 mbar up to 7 bar
| Long term stability of offset and span | ±0.1mv |
| Weigth | 2g |
