Product Details:
|
| Range: | 0-100 %LEL | Packing: | Canned |
|---|---|---|---|
| Gas: | Flammable Gas | Whether It Is Original: | Draeger Genuine |
| Highlight: | YJJ 6812950 Gas Sensor,PR Sensor Gas Sensor |
||
Product Description:

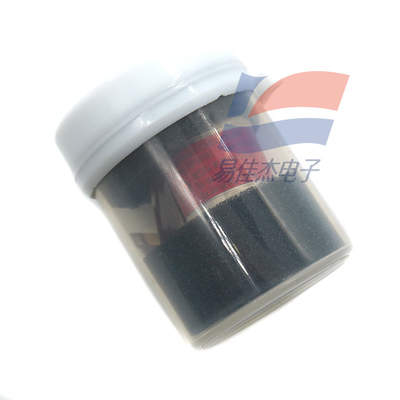

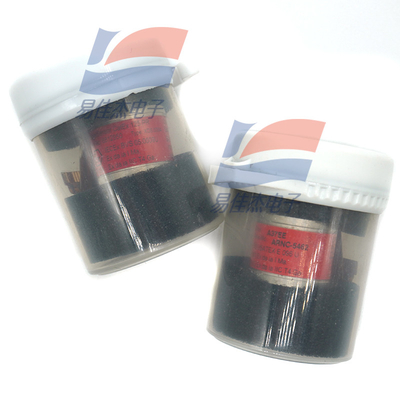

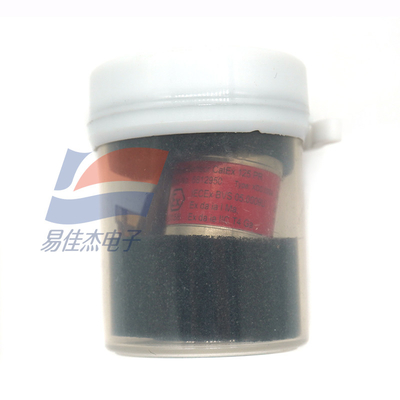

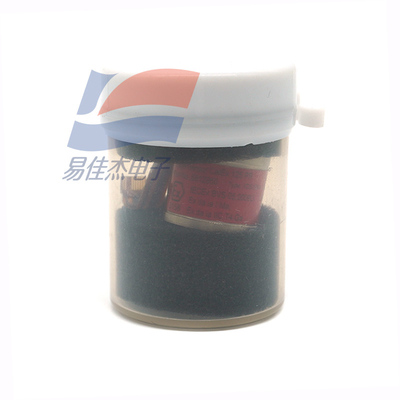

6812950 Cat Ex 125 PR Sensor Catalytic Combustion Gas Sensor 0-100 %LEL
Features:
Gas sensor independently developed by Draeger is configured on the Draeger gas detector to achieve the best combination, which is used in the Draeger Pac and X-am1/2/5 series products, which can detect a variety of different gases and vapors, and can run stably and reliably for a long time, which can reduce operating costs.
Draeger electrochemical sensor advantages
Super small size, best performance
Portable gas detection equipment for daily use should be as small and light as possible, strong and durable, but also need to have j performance. There is plenty of reason to significantly reduce the size and weight of the sensor, and to develop a generation of ultra-small Draeger electrochemical sensors, high sensitivity and enhanced gas selection, coupled with excellent long-term stability and fast response times, can ensure that users quickly and reliably get warnings about harmful gases, so that they can work more safely.
Sensor diversity
In addition to DragerSensors XXS H2S, CO and O2 sensors, Drager also offers hydride, amine and organic vapor sensors. The sensitivity data stored in the XXS OV sensor can be used for more than 12 different gases and vapors, making it possible to detect multiple harmful gases with a single sensor.
Internal research and development
Drager uses its engineering knowledge to develop its own sensors. In this way, the quality of the sensor and the accuracy of the measurement can be guaranteed. This allows these sensors to be used in conjunction with the full range of Drager gas detectors developed in-house.
Low operating cost
Drager's sensors provide reliable measurement results with long calibration intervals. We can guarantee a long service life of five years, depending on the type of sensor.
Ordering information
Name Range order number
O2 Sensor 0-25 Vol.% 6810881
CO LC sensor 0-2000 ppm 6813210
H2S LC sensor 0-100 ppm 6811525
NO2 sensor 0-50 ppm 6810884
SO2 sensor 0-100 ppm 6810885
CO sensor 0-2000 ppm 6810882
H2S sensor 0-200 ppm 6810883
NO Sensor 0-200 ppm 6811545
NO2 LC sensor 0-50 ppm 6812600
PH3 sensor 0-20 ppm 6810886
PH3 HC High concentration sensor 0-2000ppm 6812020
Specifications:
| Operating temperature | 0 ~ 50℃ |
| Battery options | Alkaline |
| Operation time | 12 hours |
| Power saving mode | > 40 hours |
