Product Details:
|
| Environment Parameters: | Range | Operating Temperature Range: | -40 To +125°C (-40 To +257°F) |
|---|---|---|---|
| Compensation Temperature Range: | -0 To 60°C (+32 To +157°F) | Storage Temperature Range: | -40 To +125°C (-40 To +257°F) |
| Weight: | 1 G | ||
| Highlight: | 6.9Kpa Pressure Sensor,Small Volume Pressure Sensor |
||
Product Description:
NPA-700B-001D Small Volume With Signal Amplification 6.9Kpa Pressure Sensor For Printed Circuit Board Mounting
Features:
The small size of the NPA product family makes it the most productive solution available today for a wide range of applications requiring calibration performance. The NPA series products are packaged with SOIC14 surface, which can be used as gauge pressure or

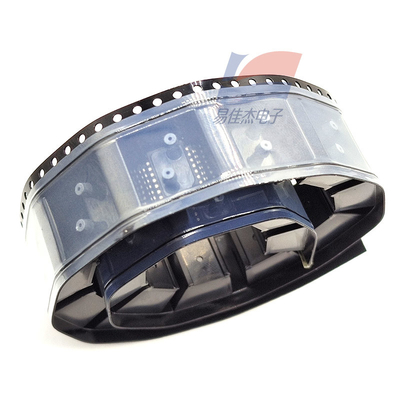

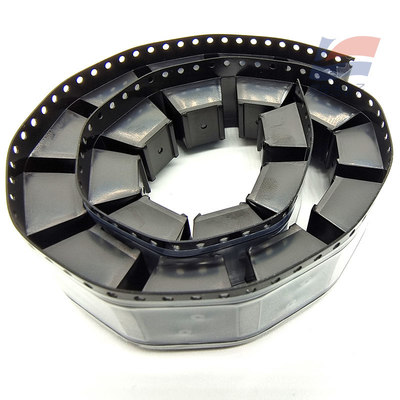

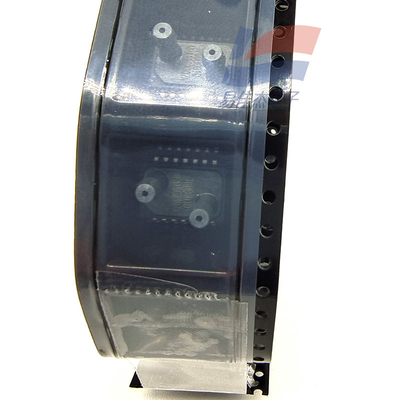

Differential pressure metering and obtain amplified analog or digital output. The sensor is suitable for mounting on the printed circuit board, and is delivered in the form of roll tape to simplify the production installation and use.
peculiarity
Surface mount
Differential pressure, gauge pressure, absolute pressure and low pressure2" H2O to 30 PSI full scale
Output options: Amplified analog, digital serial (14-bit), digital I2C, uncalibrated mV
On-chip temperature sensor in digital mode
Operating temperature range: -40°C to 125°C
Total error margin:
Withstand pressure: up to 60 psi
Specifications:
| Operating temperature range | -40°C to 125°C |
| Withstand pressure | up to 60 psi |
| Pressure range | 0 in H2O to 5 in H2O |
| Industrial | -20 to 85°C |
