Product Details:
|
| Detection Principle: | Electrochemistry | Sensor: | Smart Sensor |
|---|---|---|---|
| Sampling Method: | Diffusion | Working Power: | 12~28VDC |
| Highlight: | SP-2104 Electronic Gas Analyzer,Electronic Gas Analyzer Flameproof,Electrochemical Diffusion Toxic Gas Monitoring System |
||

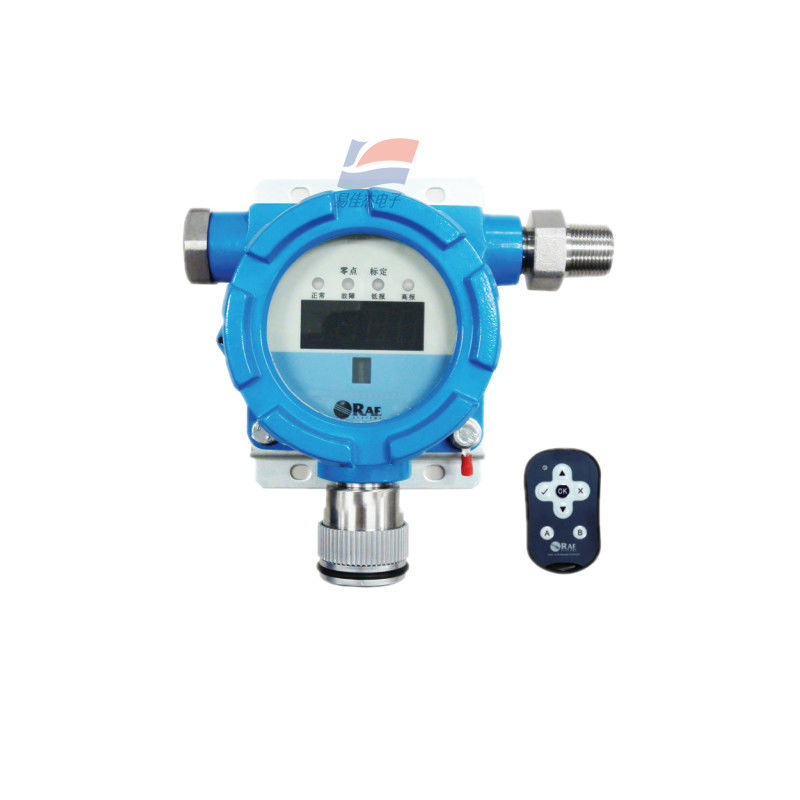

SP-2104 Toxic Gas Detector Electrochemical Diffusion
SP-2104 is a flameproof, fixed installation toxic gas detector. It can be widely used in petroleum, petrochemical, metallurgy, chemical industry, fire protection, gas, environmental protection, electricity, communication, papermaking, printing and dyeing, sewage treatment, food brewing, scientific research, education, national defense and other fields.
Prevent misuse
The instrument has over-range and reverse polarity protection, which can avoid the danger caused by improper human operation. The remote control has the function of detector recognition, which can realize one-to-one operation.
Stainless Steel Sensor Assembly
Using stainless steel sensor components, it can be used in extremely complex and harsh working conditions
Datasheet:
| Power | 80mA@24VDC |
| Output signal | 4 ~ 20mA, can be fine-tuned |
| Load impedance | 600Ω |
| Detection | ±2%F.S. (standard ***) |
| Response time | (T90) <20s |
| Protection class | IP65 |
| Electrical Interface | 3/4” NPT M |
| Optional | 3/4" NPT F, 1/2" NPT F/M, G3/4 F/M |
| Mounting method | 2” riser/wall mount |
| Other outputs | RS485 Modbus |
