Product Details:
|
| Detection Principle: | Photoionization | Sensor: | Smart Sensor |
|---|---|---|---|
| Sampling Method: | Pump Suction / Diffusion | Range: | 0~100ppm; 0~1000ppm (user Can Freely Set) |
| Highlight: | RAEGuard 2 PID Electronic Gas Analyzer,Electronic Gas Analyzer 4-20mA,Photoionization Gas Detector |
||

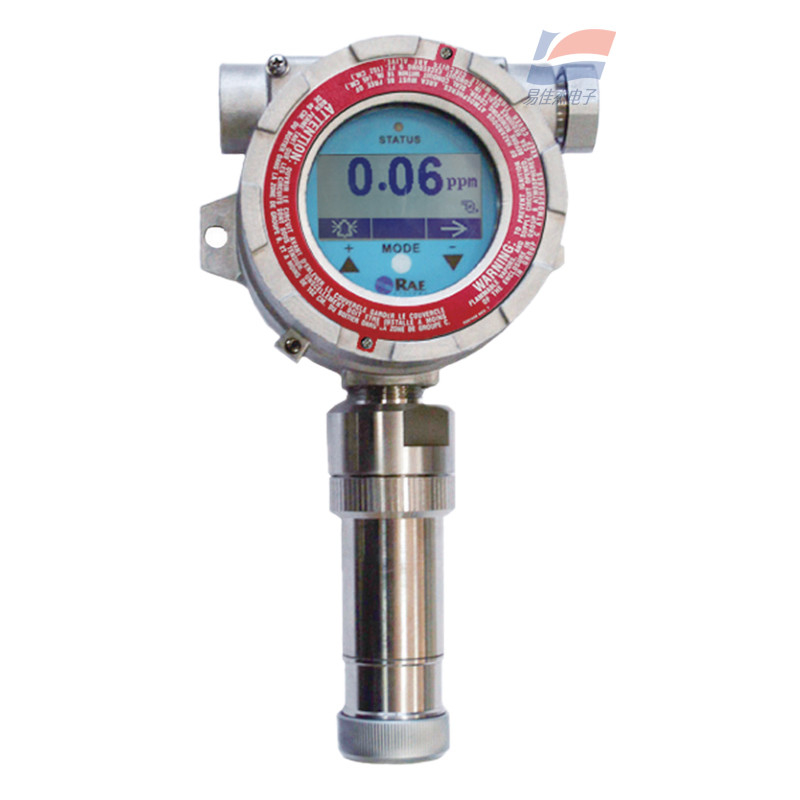

Guard2 PID FGM200X Organic Gas Detector 4-20mA Analog Signal Output
Standard configuration of RAEGuard2PIDFGM-200X organic gas detector:
• Detector host
• Operating Instructions
• Gas hood
• Mounting accessories
Optional accessories:
• Audible alarm
• Standard gas
• Pressure reducing valve, etc.
Mounting accessories
• Threading connector
• Compression nut
• U-shaped mounting clips
• Install the backplane
• Gas hood
• Rain cover
• Plug
Datasheet:
| Working power | 10~28VDC |
| ZD power | 210mA@24VDC |
| Output signal | 4～20mA, can be fine-tuned |
| Load impedance | 600Ω |
| Detection accuracy | ±3%F.S. |
| Response time (T90) | <15s |
| Protection class | IP65 |
| Electrical Interface | 3/4” NPT M |
| Mounting method | 2" riser/wall mount |
| Other outputs | RS485 Modbus; three-stage passive relay 30VDC 2A, normally open/normally closed optional |
| Ambient temperature | -40℃~+55℃ |
| Ambient humidity | 0~95% RH (non-condensing) |
| Ambient pressure | 90kPa ~110kPa |
| Display mode | 128×64 dot matrix LCD, support graphic display |
| Dimensions | 257mm×201mm×107mm (HWD) |
| Housing Material | Stainless Steel |
| Weight | 3.5kg |
