Product Details:
|
| Relative Humidity Range: | 0～100％RH | Accuracy: | ±3％RH |
|---|---|---|---|
| Operating Temperature Range: | -40～110℃ | Response Time: | 5S |
| Hysteresis: | 0± 1% RH | Output: | 1 ~ 3.6V |
| Highlight: | HTG3535CH,Integrated Circuit Temperature Sensor NTC,Digital Temperature And Humidity Sensor |
||
Product Description:

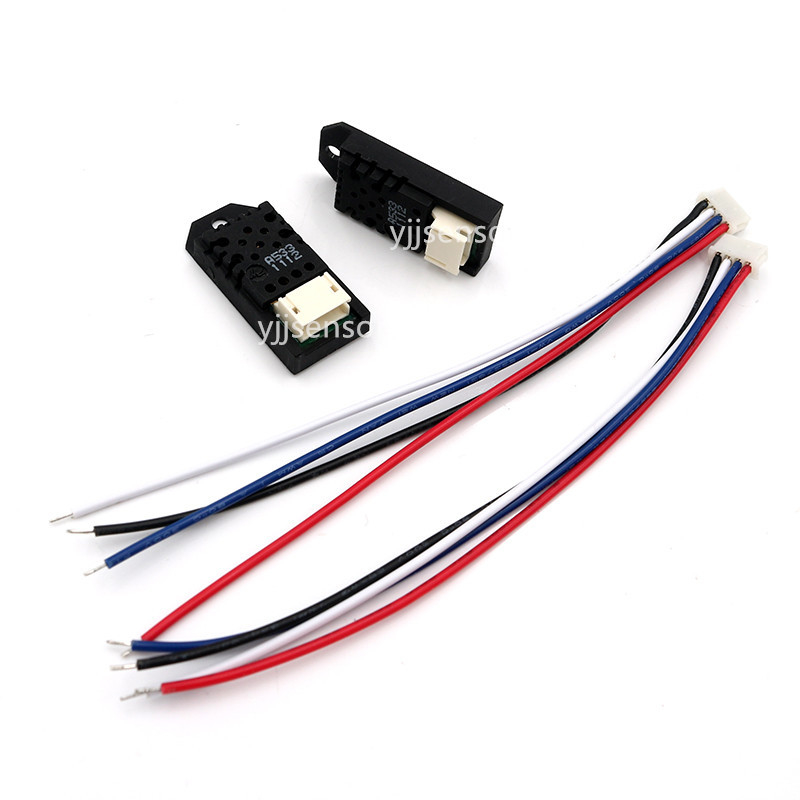

HTG3535CH Analog Voltage Output T/H Sensor Module
Features:
Based on Humirel's humidity capacitors, the HTG3535CH is a module with an integrated temperature and humidity output interface, specifically designed for OEM customers where reliable, precise measurements are required. With micro control chip, humidity is linear voltage output, with 10Kohm NTC temperature output. HTG3535CH can be used in mass production and where high measurement accuracy is required.
Air conditioning, HVAC, refrigerator, weather station, machine station, communication room, cultivation room, maintenance room, drying cabinet and so on.
Environmental protection product
Full range interchangeability
High reliability and long term stability
Accuracy: + / - 3% RH @ 55% RH
The supply voltage must be within the specified range
Through 10Kohm NTC resistance measurement temperature accuracy is +/-1% direct output in 5Vdc power supply output voltage value is 1~ 3.6V can be measured 0~ 100%RH relative humidity
Specifications:
| Storage temperature | -20-120℃ |
| Operating voltage | 20Vdc |
| Humidity range | RH0-100% |
| Temperature range | -40-110℃ |
| Maximum output current | 5mA |
| Maximum power consumption | 25nW |
