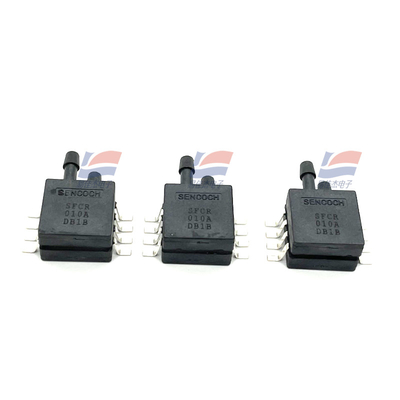

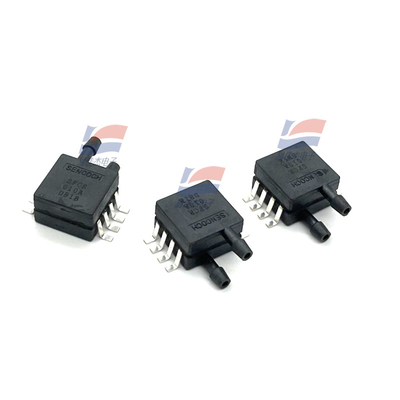

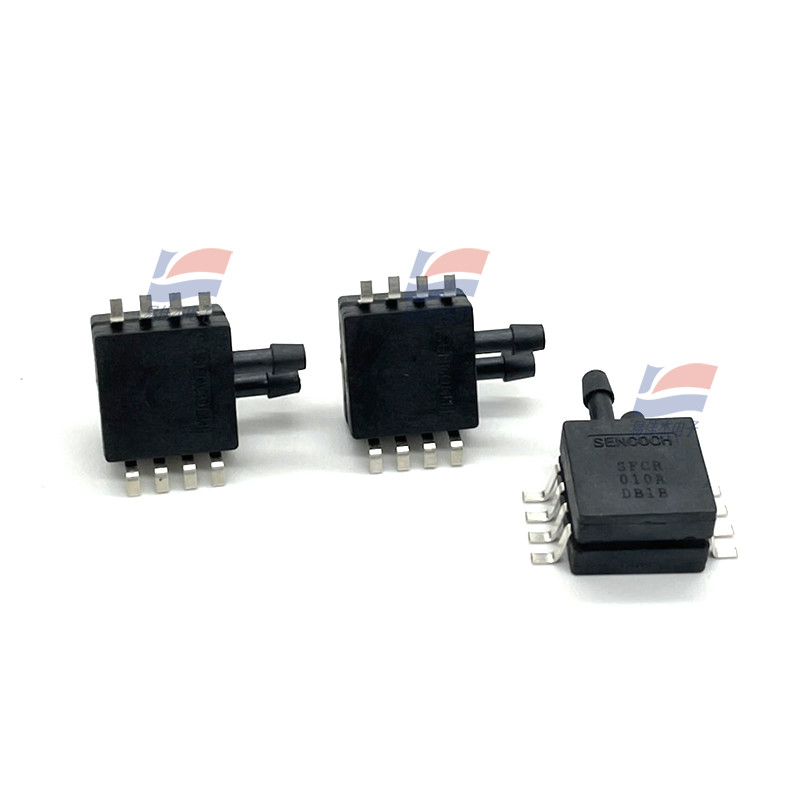

XGZP6899A Relative Pressure Sensor 100kPa 200kPa Blood Pressure Sensor Module

Product Description:

XGZP6899A -100kPa～-1～0…1～200kPa Pressure Sensor Module For Non-corrosive Gas Or Air

Features:

XGZP6899A is a prefect silicon pressure sensor module offering a ratiometric analog interface

for reading pressure over the specified full scale pressure span and temp.range.

The XGZP6899A incorporates a silicon piezoresistive pressure sensor die and an interior

Application Specific Integrated Circuit(ASIC). The SOP8 package facilitate the surface mounting,

and horizontal nozzle can reduce products’ height and space visibly.

The XGZP6899A is fully calibrated and temperature compensated for offset,sensitivity,

temperature and non-linearity,so XGZP6899A pressure sensor module satisfy the prefect

repeatability,linearity, stability and sensibility, which can be applied directly in medical equipment,

fitness machine,home electronics,and other pneumatic devices etc.

XGZP6899A pressure sensor module is for high volume application at an affordable cost and

perfect performance.

Customized calibrations(working voltage,output voltage,and pressure range) are available.

Applications

■ For Medical and healthy equipment field, such as Blood pressure test and monitor, Patient

Monitoring, Infusion and Syringe Pumps, Anesthesia Machines, Respirators and Ventilators, NPWT,

DVT, COPD Treatment, catheter, Kidney dialysis, Cupping& Cosmetology, Massage device etc.

■ For Home appliance field, such as Refrigerator, Printer, Humidifier, Washer/Dryer, Coffee

Machine, Cleaner, Robotic, Emergency Lamp,Sport Equipment etc.

■ For Other fields, such as air pump, emergency lamp, dust collector, HVAC and pneumatic

device,automotive application etc.

Specifications:
