Product Details:
|
| Measuring Range: | 0kPa ~ 100kPa... 2000kPa | MEMS: | Technology |
|---|---|---|---|
| Pressure Form: | Absolute Pressure | COB Package: | Small Size |
| Operating Temperature Range: | -30 ° C To +125 ° C | Mass Production: | (100K Per Day) |
| Highlight: | XGZP132 Electronic Pressure Sensor,Electronic Pressure Sensor 2000kPa,silicon piezoresistive Differential Air Pressure Sensor |
||
Product Description:

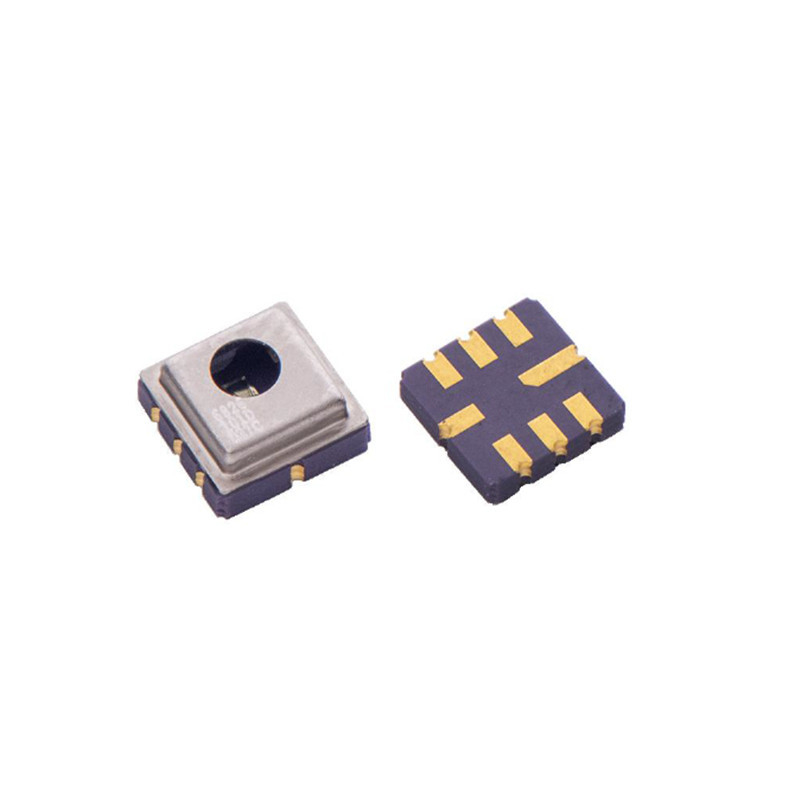

XGZP132 0 kpa to 100 kpa... 2000kPa Pressure Sensor For Non-corrosive, Non-conductive Gas Or Liquid
Features:
XGZP132 PRESSURE sensor is suitable for consumer electronics and automotive electronics and other fields, its core part is a MEMS technology processing
The silicon piezoresistive pressure sensitive chip. The pressure sensing chip consists of an elastic membrane and four resistors integrated on the membrane, four varistors
The Wheatstone bridge structure is formed, and when pressure is applied to the elastic film, the bridge generates a voltage that is linearly proportional to the applied pressure
Output signal.
XGZP132 pressure sensor package adopts ceramic substrate as the base material, compact structure, convenient for users to use the surface mount way
Loading. Good linearity, repeatability and stability, high sensitivity, convenient for users to use op-amp or integrated circuit for output and temperature drift debugging
And compensation.
(4) altimeter, atmospheric pressure
(4) tire pressure gauge, intake pressure measurement
(3) Air pumping pump, air charging pump
(4) Pressure instrument
Structure performance
(4) Pressure sensitive chip: silicon material
Lead: gold wire
(4) Packaging case: ceramic substrate and metal cover plate
Pin: gold plated
(3) Net weight: about 0.3g
Specifications:
| Measurement medium | air |
| medium temperature | (25±1) ℃ |
| ambient temperature | (25±1) ℃ |
| Vibration | 0.1g(1m/ S2)Max |
| humidity | (50%±10%) RH |
| power supply | (5±0.005) V DC |
