Product Details:
|
| Product Model: | MC105 | Product Type: | Catalytic Combustion Gas Sensor |
|---|---|---|---|
| Standard Package: | Plastic Package | Working Voltage: | (V) 2.5±0.1 |
| Working Current (mA): | 150±10 | ||
| Highlight: | MC105 Gas Sensor,MC105 Humidity Compensation Gas Sensor,MC105 Catalytic Combustion Gas Sensor |
||

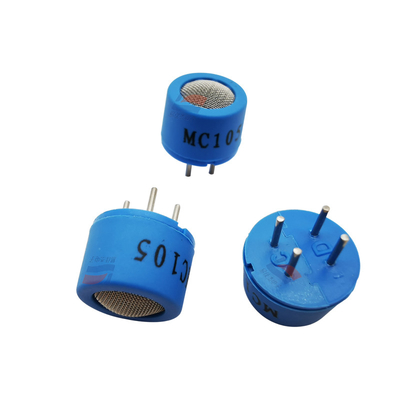

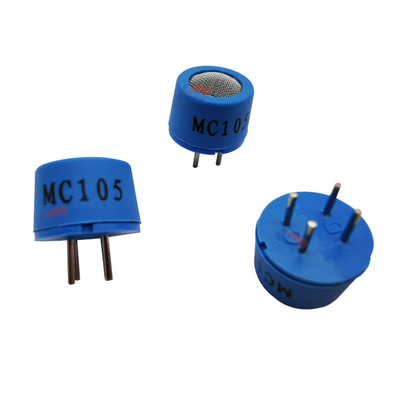

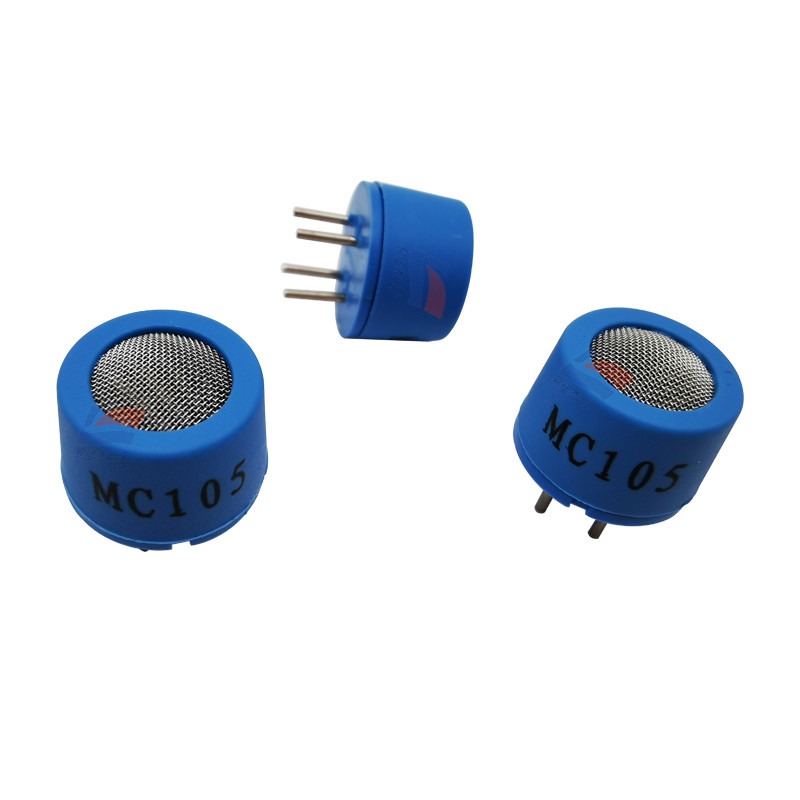

MC105 Catalytic Combustion Gas Sensor Temperature and Humidity Compensation
MC105 catalytic combustion gas sensor works according to the principle of catalytic combustion effect. It is composed of a pair of detection elements and compensation elements to form an arm of the bridge. When encountering flammable gas, the resistance of the detection element increases, and the output voltage of the bridge circuit changes. The voltage variable varies with the gas. When the concentration increases, it increases proportionally, and the compensation element acts as a reference and compensation for temperature and humidity.
Specification Sheet:
| Sensitivity (mV) | 1% methane 20~50 |
| 1% propane 30~70 | |
| Linearity (%) | ≤5% |
| Measuring range (%LEL) | 0~100 |
| Response time (90%) | ≤10s |
| Recovery time (90%) | ≤30s |
| Operating environment | -40~+70℃ below 95%RH |
| Storage environment | -20~+70℃ below 95%RH |
| Lifespan | 5 years |
