Product Details:
|

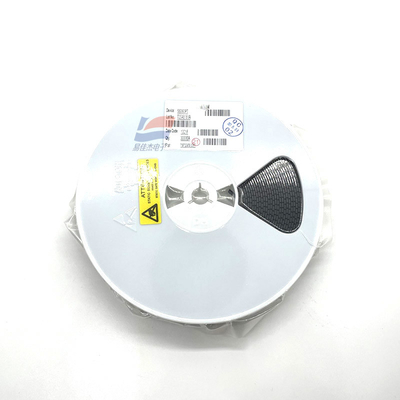

| Package / Case: | SOT-23-3 | Package: | Cut Tape |
|---|---|---|---|
| Supply Voltage: | Max: 24 V | Supply Voltage: | Min: 3 V |
| Highlight: | SS360PT,SOT-23 Hall Effect Current Sensor IC |
||
SS360PT HighSensLatch SOT-23 Digi Hall-Effect IC High Sensitivity
The SS360PT, SS460P and SS460P-T2 High Sensitivity Latching Hall-effect Sensor ICs with Built-in Pull-up Resistors are small, sensitive, and versatile devices that are operated by the magnetic field from a permanent magnet or an electromagnet. They are designed to respond to alternating
North and South poles. The SS360PT is turned on by a North pole while the SS460P and SS460P-T2 are turned on by a South pole.
POTENTIAL APPLICATIONS
• Medical infusion pumps
• Ambulatory noninvasive pump pressure
• Occulsion detection
• Kidney dialysis machines
• Load and compression sensing
• Variable tensions control
| Type | Digital Hall Effect Sensor |
| Operating supply current: | 3.5 mA |
| Maximum output current | 20 mA |
| Operating Point Min/Max | 5 G, 55 G |
| Min/Max Release Point (Brp) | - 55 G, - 5 G |
| Operating supply voltage | 24 V |
| Minimum operating temperature | - 40 C |
| Maximum operating temperature | + 125 C |
| Installation style | SMD/SMT |
